Wiring of the Microswitches on Aqua Stoves

Wiring of the Microswitches on Aqua Stoves

There are two microswitches on Aqua stoves: one dedicated to the cleaning of the brazier and the other to the front door.

NG21 Control Units:

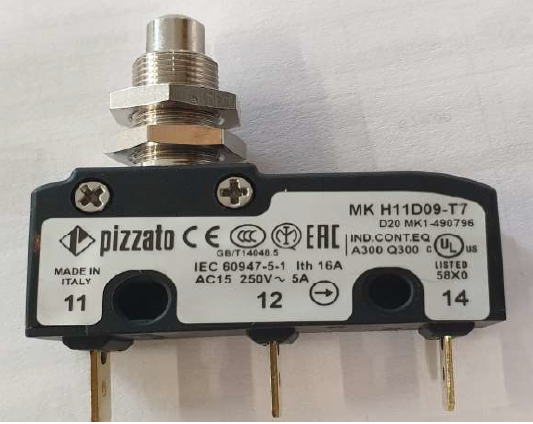

Brazier Cleaning Microswitch

• Connection to the microswitch Fastons: 11 and 12
• Connection on the control unit: pin 48 and 49
• Contact: normally open

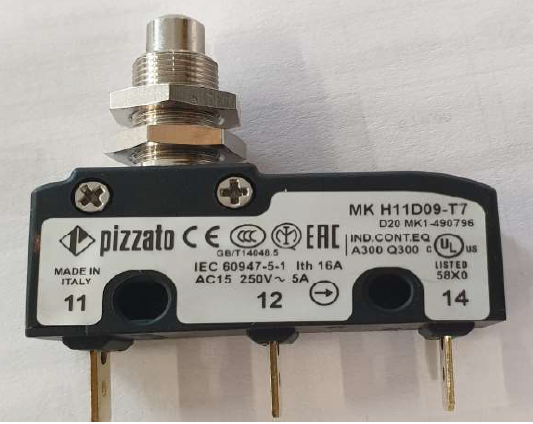

Front Door Microswitch

• Connection to the microswitch Fastons: 11 and 14
• Connection on the control unit: pin 35 and 36
• Contact: normally closed

Attention – for MB250 control units:

Brazier Cleaning Microswitch

• Connection to the microswitch Fastons: 11 and 14
• Connection on the control unit: pin 47 and 50
• Contact: normally closed

Front Door Microswitch

• Connection to the microswitch Fastons: 11 and 12
• Connection on the control unit: pin 34 and 35
• Contact: normally open
