Combustion Chamber Glass Cleaning – Trifolium

To ensure effective cleaning of the combustion chamber glass, it is necessary to check the proper functioning of the dedicated glass cleaning system.

In particular, make sure that:

• the air supply ducts for glass cleaning are free from obstructions;

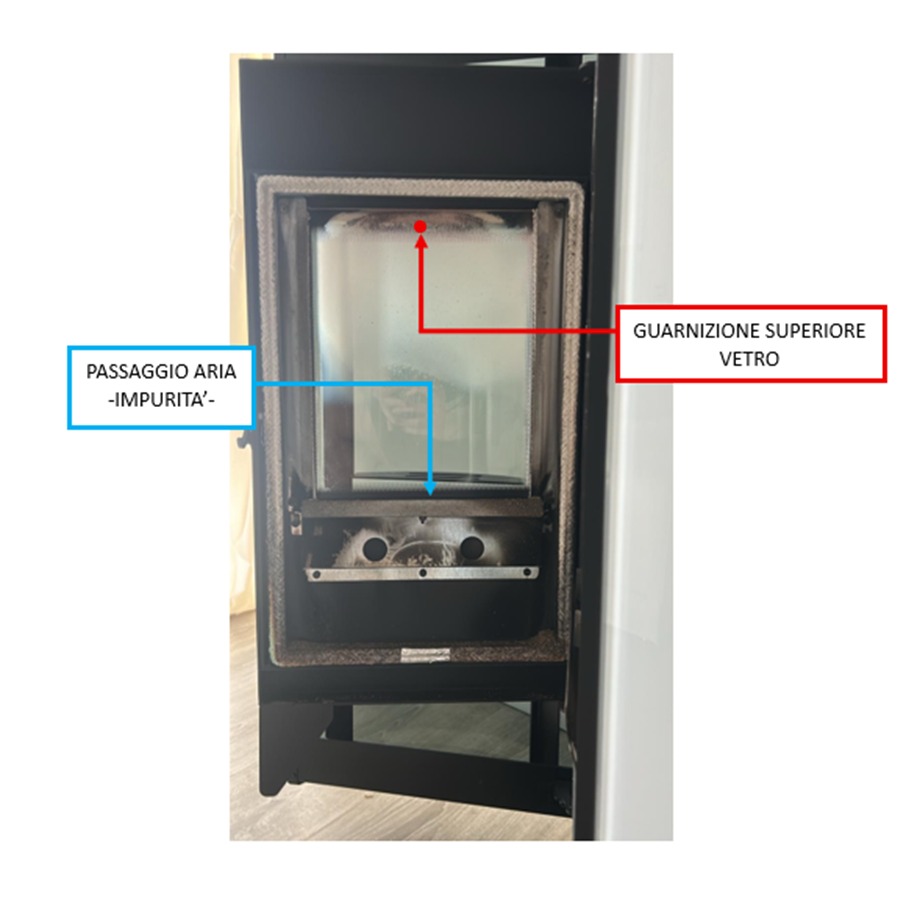

• there are no accumulations of ash, dust, or combustion residues that could impair the airflow (blue line).

If, after the above checks, the problem with the glass persists, you can proceed with a more thorough inspection by doing the following:

• remove the upper glass gasket (red line);
• check the condition and cleanliness of the air passage channel (blue line);
• restore, if necessary, the proper airflow by removing any deposits or obstructions.

At the end of the procedure, turn on the stove and verify that the glass is being cleaned properly.
